Small kitchen cabinet hinges play a crucial role in both functionality and space optimization in compact kitchens. These specialized hardware pieces allow doors to swing smoothly while minimizing their footprint in tight quarters. Choosing the right hinges can make the difference between cabinets that function flawlessly and those that create frustration. This guide examines six key aspects of small kitchen cabinet hinges, helping you select and maintain the best options for your space constraints.
Types of Hinges Suitable for Small Kitchens
Concealed hinges, also called European hinges, are ideal for small kitchens because they tuck completely inside the cabinet when closed. These adjustable hinges provide a clean, streamlined look without protruding hardware. Most feature a clip-on mechanism that allows easy door removal for cleaning or access. Their compact design maximizes usable space while offering smooth operation and quiet closing.
Butt hinges work well for traditional-style small kitchens with face-frame cabinets. While slightly more visible than concealed hinges, smaller versions (2-3 inches) maintain a low profile. Look for slim models with ball bearings for smoother operation in tight spaces. These hinges require precise mortising into both the door and frame, so professional installation often yields better results in confined areas.
Pivot hinges offer another space-saving solution, particularly for unusual cabinet configurations. Mounted at the top and bottom of doors rather than the sides, they allow doors to swing clear of adjacent obstacles. This makes them valuable in corner cabinets or tight galley kitchens where every inch matters. Some pivot systems enable doors to open a full 180 degrees for maximum accessibility.
Measuring and Sizing Considerations
Accurate measurements ensure hinges fit properly in small kitchen cabinets. For concealed hinges, measure the door thickness (typically 1/2″ or 3/4″) and overlay (how much the door covers the cabinet frame). Standard overlays range from 1/4″ to 1-1/2″, with partial overlay being most common in small kitchens. The hinge cup diameter (usually 35mm) must match your drill bit for proper installation.
For butt hinges, the leaf length should be proportional to the door size—generally 1/3 to 1/2 the door width. In small kitchens, compact 2-2.5″ hinges often work best. Consider the hinge’s knuckle projection; slimmer profiles prevent doors from rubbing against adjacent surfaces when opening. Weight capacity matters too—heavier solid wood doors need sturdier hinges than lightweight materials.
Pivot hinges require precise top and bottom alignment for smooth operation. Measure the exact door height and thickness, as even small deviations can cause binding. Some pivot systems include adjustable components to accommodate minor measurement variations, which can be helpful in older small kitchens where cabinet dimensions may not be perfectly uniform.
Space-Saving Hinge Features
Soft-close mechanisms prevent doors from slamming—particularly valuable in tight kitchens where abrupt movements can lead to collisions. These hydraulic or spring-based systems gently slow the door during the last few inches of closing. While adding minimal bulk, they significantly improve functionality and reduce wear on cabinet boxes in frequently accessed small kitchens.
Adjustable hinges solve common problems in compact spaces where perfect alignment is challenging. Three-way adjustable concealed hinges allow tweaking the door position in/out, up/down, and side-to-side after installation. This flexibility helps compensate for slight cabinet irregularities or settling that often occurs in small kitchen environments with limited structural support.
Clip-on hinge systems offer convenience in cramped working conditions. These allow complete door removal by simply pressing a release lever—helpful when you need full access to cabinet contents in tight quarters. The mechanism also simplifies future adjustments or hinge replacement without removing screws—a significant advantage when working in confined spaces behind installed doors.
Installation Tips for Tight Spaces
Proper hinge placement affects both function and space utilization. For concealed hinges, position them 3-4 inches from the top and bottom of the door, adjusting slightly for very short doors. In small kitchens, consider adding a third hinge near the center for tall pantry doors to prevent sagging over time. Use a 35mm Forstner bit at the correct depth (typically 11-13mm) for clean hinge cup holes.
When installing in confined areas, temporary door supports prove invaluable. A simple block of wood cut to the proper height holds doors at the correct level while attaching hinges. Magnetic levels that adhere to the door help maintain alignment without occupying precious hand space. For the tightest corners, right-angle drill attachments allow hinge screw installation where standard drills won’t fit.
Test door swing clearance before final tightening. In small kitchens, doors may need to open fully to access contents, so ensure they clear adjacent walls, appliances, or other cabinets. If space is extremely limited, consider hinges with restricted opening angles (90-110 degrees) to prevent collisions while still providing adequate access.
Finish and Aesthetic Considerations
Hinge finishes should complement other kitchen hardware for a cohesive look. In small kitchens where details are more noticeable, matching hinges to cabinet pulls creates visual harmony. Popular finishes include brushed nickel, matte black, and oil-rubbed bronze—choose one that coordinates with your faucet and other metal elements.
Visible hinges can become design features in traditional-style small kitchens. Decorative butt hinges with intricate designs add character, while sleek, minimal concealed hinges suit contemporary spaces. For glass-front cabinets, consider specialty hinges designed specifically for glass doors—these often include discreet mounting plates that don’t detract from the display.
Consistency matters in small kitchens where every element is visible. Use the same hinge type and finish throughout for a unified appearance, adjusting only size as needed for different door weights. If mixing hinge types is unavoidable (such as in corner cabinets), position them symmetrically to create intentional-looking variation rather than appearing haphazard.
Maintenance and Troubleshooting
Regular cleaning prevents grime buildup that can hinder hinge operation—especially important in small kitchens where cooking residue accumulates quickly. Wipe hinges with a mild detergent solution, avoiding abrasive cleaners that could damage finishes. For stubborn grease, isopropyl alcohol on a soft cloth effectively cuts through buildup without harming most hinge materials.
Common hinge issues in small kitchens include squeaking, sticking, or misalignment. A drop of lightweight machine oil at pivot points eliminates squeaks. For sticking doors, check for paint buildup or debris in the hinge mechanism—a dental pick works well for careful cleaning. Misaligned doors often just need minor adjustments using the hinge’s built-in screws rather than complete reinstallation.
Over time, hinges may loosen from frequent use—a particular concern in small kitchens where cabinets get opened constantly. Periodically check and tighten screws, using toothpicks or specialized cabinet screw anchors if screw holes have become stripped. Consider upgrading to higher-quality hinges if replacements are needed—better materials and construction withstand the demands of compact kitchen environments more effectively.
With proper selection and care, small kitchen cabinet hinges will provide years of reliable service while maximizing your available space. The right hinges blend seamlessly into your kitchen’s design while offering the functionality needed in tight quarters. Thoughtful hinge choices contribute significantly to making a small kitchen both beautiful and highly functional.
Richelieu Zinc Self-closing Concealed Cabinet Hinge in the Cabinet

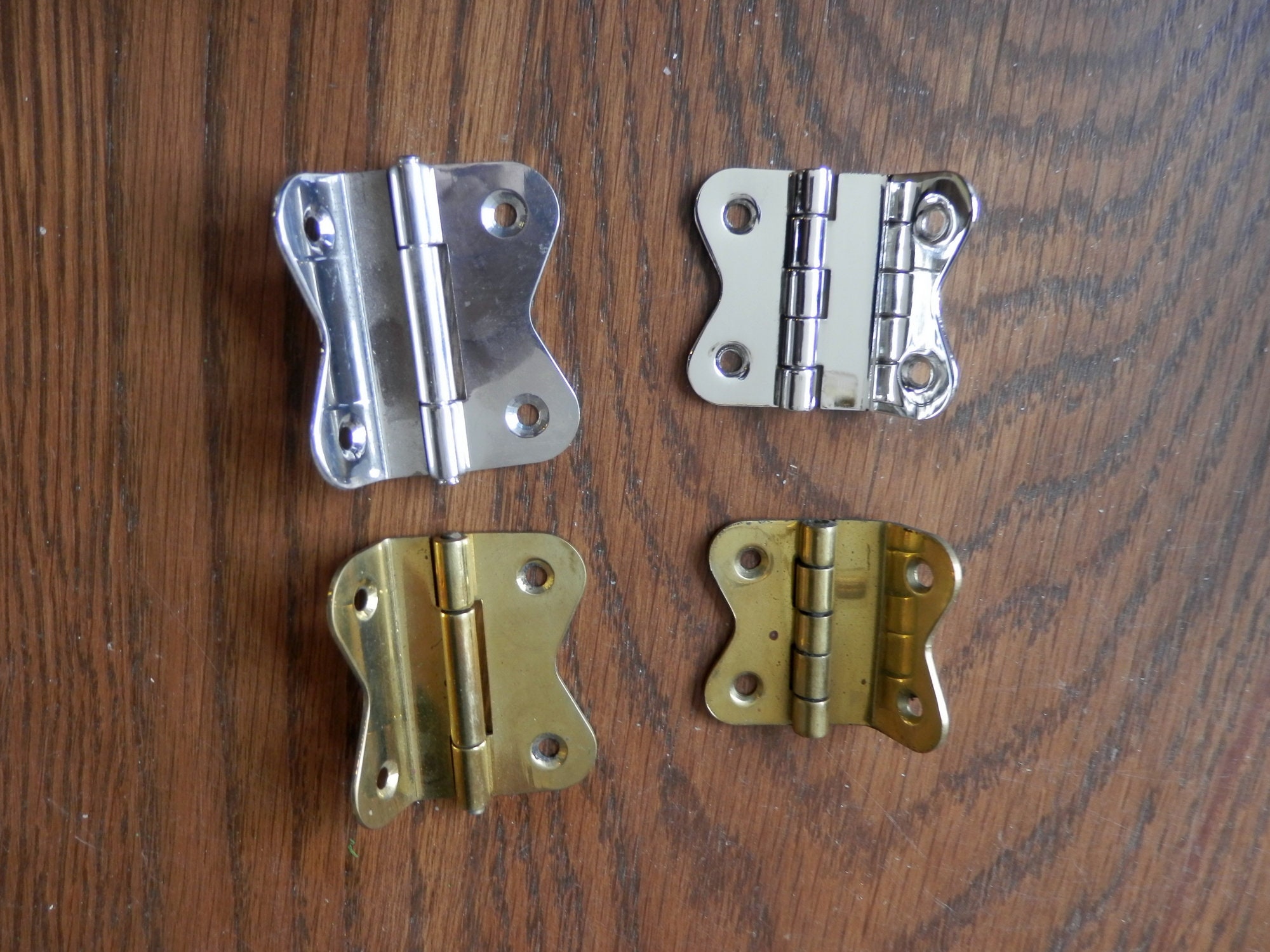

Hoosier Kitchen Cabinet Hinges Small and Large Polished Brass – Etsy
